Doors-Sliding

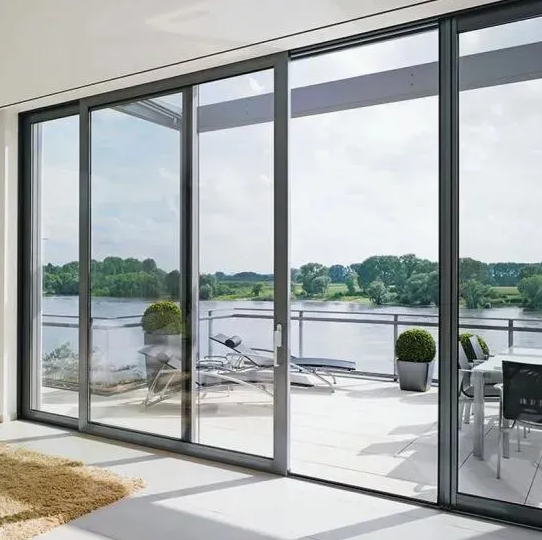

Sliding Doors

Contact US

100mm Frame Width
Large doors are fitted with heavy duty double rollers. All sliding door wheels have stainless steel bearings.
A commercial lock stile is available for architectural hardware applications.
A low profile sill is available for nursing home applications as well as an Australian standard AS1428 compliant sill.
The Hamilton 100mm sliding door can be coupled to various other Wintec Systems products.

Common Color: Frosted Black, White Powder Coating
Woodland grey(Gloss), Ironstone (Gloss), Shale Grey (Gloss)
Ultra Silver (Gloss), Dune (Gloss), Paperbark (Gloss), Primrose (Gloss)
White Birch (Gloss), Surfmist (Gloss), Architectural White (Gloss)
Pearl White (Gloss), Silver Pearl Kinetic (Gloss), Black (Gloss)
Monument (Gloss), Clear, Residential Bronze
Customised colors to better match your home.

Laminated Glass (6.38mm)
Glass types: Frosted glass, Toughened glass, Low-e coated glass
Select from various types of glass
Special performance glass: Fireproof glass

Screen Types: Stainless Steel Mesh, Fiberglass Screen
Fly and insect screen is a great way to keep insects out of your home
Easy installation and removal
Keeps insects and bugs from entering your home
Durability, Airflow, and Visibility
Meets Australian standards

Australia Doric hardware
Innovative & premium quality door hardware
Award winning and market leading window hardware
Designed to meet Australian safety standards
Provides reliable protection while enhancing the look of your home or business
Balancing Security and Aesthetics
Durability and Style Combined

Specifications

Structural performance (up to)
Serviceability Limit State Wind Pressure: 3000Pa max
Ultimate Limit State Wind Pressure: 6000Pa max
Water Penetration Resistance Pressure: 450Pa

Max maximum recommended size (up to)
Height: 2700mm
Width: 1500mm (sash width)

Glazing Maximum Thickness (up to)
Single Glazed: 6.38mm
Double Glazed: 22mm

Acoustics (up to)
Sliding Door: RW (C:Ctr): Up to 47 (-1:-7)
