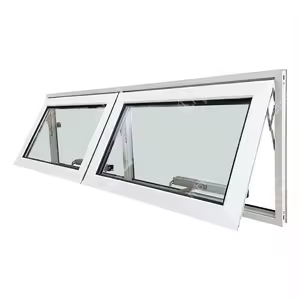

Awning Windows

Contact US
  • Top hung system with hollow mullion and stile sections to add strength and security.
  • Q’lon seals improves energy, weather and acoustic performance
  • It can also accommodate friction stays and chain winder options
  • The design includes multiple stiles to accommodate several glass thicknesses
  • Options include: restricted opening, standard or barrel key locking, insect screens.
  • Truss structure design for increased structural strength
  • Frame widths available: 48mm, 75mm, and 100mm.
  • Common Color: Frosted Black, White Powder Coating
  • Woodland grey(​Gloss), Ironstone (​Gloss), Shale Grey (​Gloss)
  • Ultra Silver (Gloss), Dune (​Gloss), Paperbark (​Gloss), Primrose (Gloss)
  • White Birch (Gloss), Surfmist (​Gloss), Architectural White (​Gloss)
  • Pearl White (Gloss), Silver Pearl Kinetic (​Gloss), Black (​Gloss)
  • Monument (​Gloss), Clear, Residential Bronze
  • Customised colors to better match your home.
  • Laminated Glass (6.38mm)
  • Thickness of single glass: 4-6.38mm
  • Glass types: Frosted glass, Toughened glass, Low-e coated glass
  • Select from various types of glass
  • Special performance glass: Fireproof glass
  • Screen Types: Stainless Steel Mesh, Fiberglass Screen
  • Fly and insect screen is a great way to keep insects out of your home
  • Easy installation and removal
  • Keeps insects and bugs from entering your home
  • Durability, Airflow, and Visibility
  • Meets Australian standards
  • Australia Doric hardware
  • Innovative & premium quality door hardware
  • Award winning and market leading window hardware
  • D​​esigned to meet Australian safety standards
  • Provides reliable protection while enhancing the look of your home or business
  • Balancing Security and Aesthetics
  • Durability and Style Combined

Specifications

Structural performance (up to)
Serviceability Limit State Wind Pressure: 1000Pa max
Ultimate Limit State Wind Pressure: 3500Pa max
Water Penetration Resistance Pressure: 1000Pa

Max maximum recommended size (up to)
Height: 1550mm
Height with low light: 2750mm
Width: 1200mm (sash width)

Glazing - Maximum Thickness (up to)
Single Glazed: 6.38mm
Double Glazed: 22mm

Acoustics (up to)
48mm Awning Window: RW (C:Ctr): 32 (0:-1)
101.6mm Awning Window: RW (C:Ctr): 35 (-1:-3)
