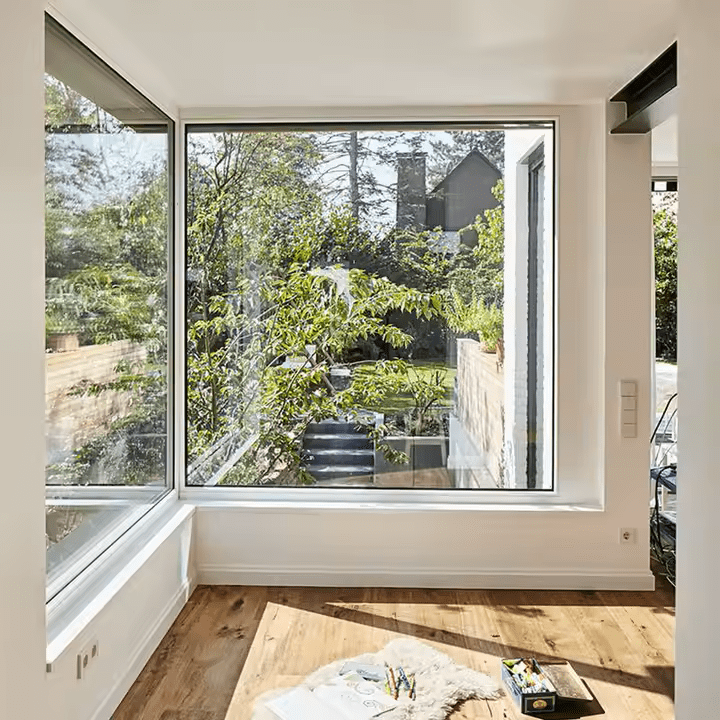

Fixed Windows

Contact US

Stayed system with hollow mullion and stile sections to add strength and security.
The additional use of seals with this system also improves energy.
Great weather and acoustic performance.
Multiple bays can be added using a standard mullion.
Frame widths available: 48mm, 75mm

Common Color: Frosted Black, White Powder Coating
Woodland grey(Gloss), Ironstone (Gloss), Shale Grey (Gloss)
Ultra Silver (Gloss), Dune (Gloss), Paperbark (Gloss), Primrose (Gloss)
White Birch (Gloss), Surfmist (Gloss), Architectural White (Gloss)
Pearl White (Gloss), Silver Pearl Kinetic (Gloss), Black (Gloss)
Monument (Gloss), Clear, Residential Bronze
Customised colors to better match your home.

Laminated Glass (6.38mm)
Thickness of single glass: 4-6.38mm
Glass types: Frosted glass, Toughened glass, Low-e coated glass
Select from various types of glass
Special performance glass: Fireproof glass

Screen Types: Stainless Steel Mesh, Fiberglass Screen
Fly and insect screen is a great way to keep insects out of your home
Easy installation and removal
Keeps insects and bugs from entering your home
Durability, Airflow, and Visibility
Meets Australian standards

Australia Doric hardware
Innovative & premium quality door hardware
Award winning and market leading window hardware
Designed to meet Australian safety standards
Provides reliable protection while enhancing the look of your home or business
Balancing Security and Aesthetics
Durability and Style Combined

Specifications

Structural performance (up to)
Serviceability Limit State Wind Pressure: 1800Pa max
Ultimate Limit State Wind Pressure: 2300Pa max
Water Penetration Resistance Pressure: 600Pa

Max maximum recommended size (up to)
Height: 1250mm
Height with low light: 2000mm
Width: 600mm (sash width)

Glazing - Maximum Thickness (up to)
Single Glazed: 6.38mm
Double Glazed: 22mm

Acoustics (up to)
48mm Casement Window: RW (C:Ctr): 32 (0:-1)
101.6mm Casement Window: RW (C:Ctr): 35 (-1:-3)
